2000nm 60nm Single Mode Tunable Filter

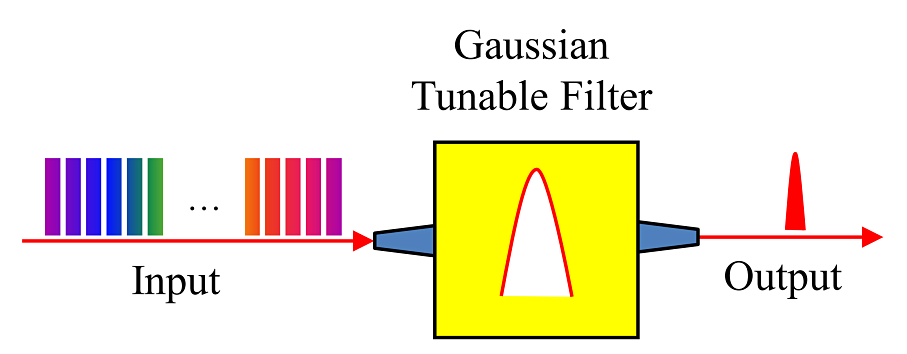

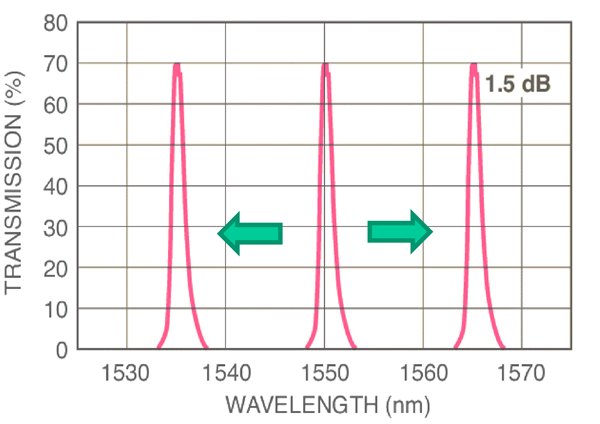

High-speed tunable bandpass filter. As a two-port optical module, the input port receives broadband multi-wavelength light and only a small portion of the incident signal within the passband is allowed to pass through the filter and directed to the output port. The center wavelength of the selected band can be tuned to anywhere within the operating wavelength range. In our design flexibility, transmission bandwidth, wavelength tuning range can be customized. The voltage-controlled filter requires no moving parts, has fast tuning speed, and is compact and small in size. Our filters are used as suppression filters in optical systems to improve laser signal-to-noise ratio in wavelength scanning engines of optical spectrum analyzers (OSAs) and in system diagnostic communication systems.

Product features：High-speed wavelength tuning、 Wide operating wavelength range、 Flat-top/Gaussian filter shapes、 No moving parts、 Over 1 billion cycles

Application area：Optical spectrum analyzer engine、 ASE noise suppression、 Optical channel diagnostics、 Test and measurement instruments、 Channel selection for wavelength lockers

Unit Price

Please contact customer service for a discounted quote.

Part Number

TOF-2000-500-60-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Technical parameters:

Parameters	Min	Typical	Max	Unit
Center wavelength	–	1060, 1310, 1550, 2000	–	nm
Tuning range[1]	–	60	80	nm
Tuning resolution	–	0.1	–	nm

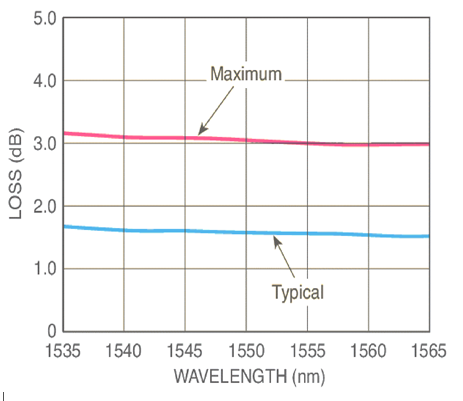

Insertion loss[2]	2	3	4	dB
Bandwidth @-3dB	–	1	1.2	nm
Bandwidth @-20dB	–	10	–	nm
Sideband suppression	–	30	–	dB
PDL (SM fiber only)	–	0.15	0.35	dB
PMD (SM fiber only)	–	–	0.5	ps
Extinction ratio (PM fiber only)	18	23	–	dB
Return loss	40	–	–	dB
Operating power (CW)[3]	–	0.5	15**	W
Operating temperature	0	20	60	°C
Storage temperature	-10	–	70	°C
Dimensions	–	43 L x 43 W x 20 H	–	mm
