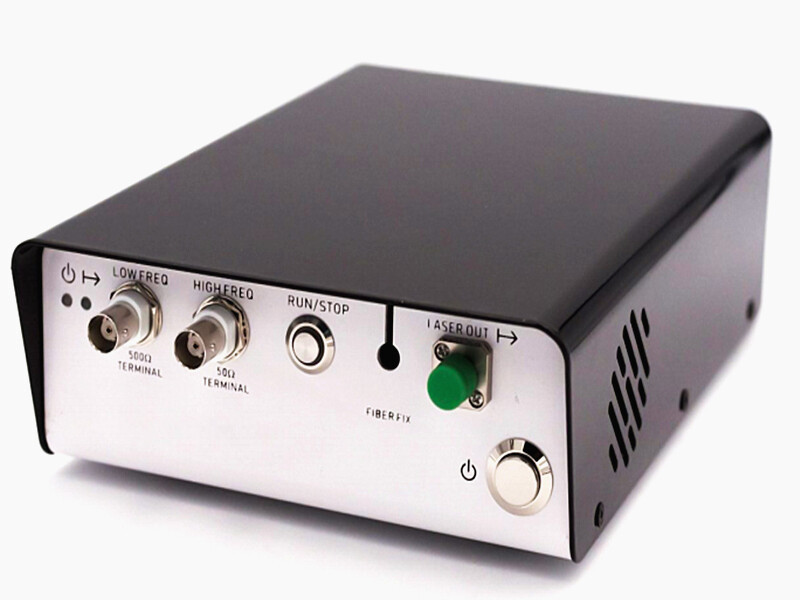

910nm High-Power Desktop Single-Mode Pump FBG Stabilized Wavelength Light Source

Idealphotonics' modular laser control is based on an advanced microprocessor control system, combined with high-precision ATC and ACC (APC) control circuits, achieving highly stable laser output while ensuring quick and intuitive operation of the light source. We can also provide corresponding communication interfaces and control software based on user requirements to enable computer control. This light source features a one-key recovery function (Run/Stop button), effectively helping users return to their previous working state. This is a highly integrated modular system light source, utilizing PC software for intelligent control, allowing customers to set the desired operating temperature and current according to their needs. It is highly suitable for experimental scientific research and production testing. Additionally, for applications requiring laser modulation, we have included two external modulation ports—one for high frequency and one for low frequency—to better meet customers' needs for a versatile, all-in-one solution.

Product features：Supports one-key recovery function (no need to restart and preheat) 、Software remote operation, intelligent control 、Stable and continuously adjustable output power 、Compact and small structure 、High-precision ACC and ATC control circuits 、Built-in high- and low-frequency modulation bandwidth BNC interfaces

Application area：Laser sensing 、Pump source 、Test and measurement

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-250-M-910-FBG

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Driver Parameters

Features	Min	Max.	Unit	Notes
Power Supply Voltage	100	230	VAC	Mains Electricity
Power	5	20	W
Laser Driver Current Laser Driver Voltage Response Frequency	0	128	mA	Jumper Options
		266
		590
Temperature Control Range	0	3.1	V	@250mA
TEC Output Current	0	15	MHz	-3db
TEC Output Voltage	0	5	℃
Analog Input (Low Frequency)	-1.5	1.5	A
Analog Input (High Frequency)	-4.4	+4.4	V
PD Monitoring Range	-2.5	2.5	V
Features	-2.5	2.5	V
Power Supply Voltage	0	2	mA

Laser Parameters

Parameters	Unit	Value
Laser Wavelength	nm	910±1
Power	mW	300
FWHM (Full Width at Half Maximum)	nm	0.42
Operating Current	mA	500
Threshold Current	mA	70
Operating Voltage	v	1.6
Thermistor	Ω	10000

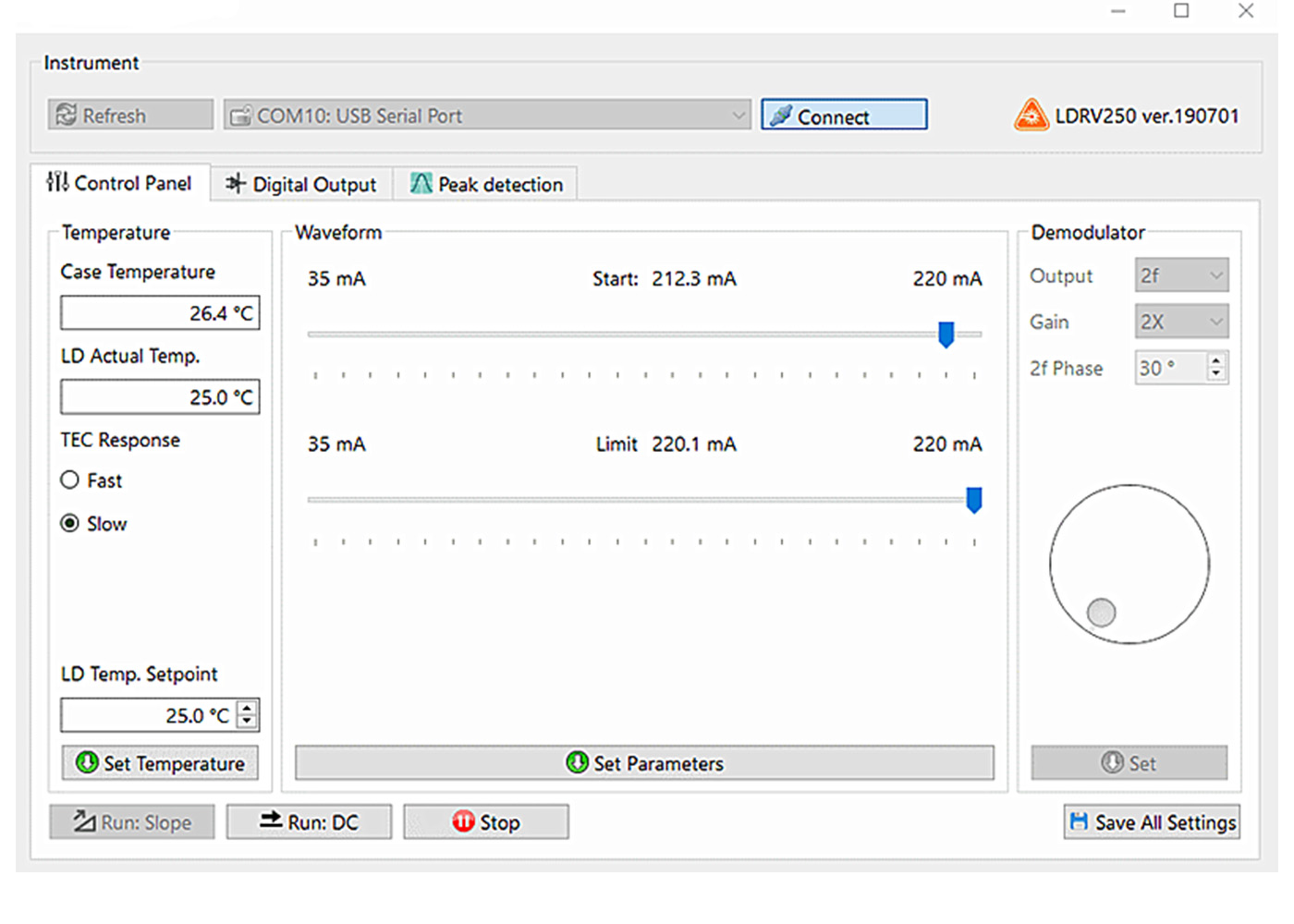

Control Software Interface

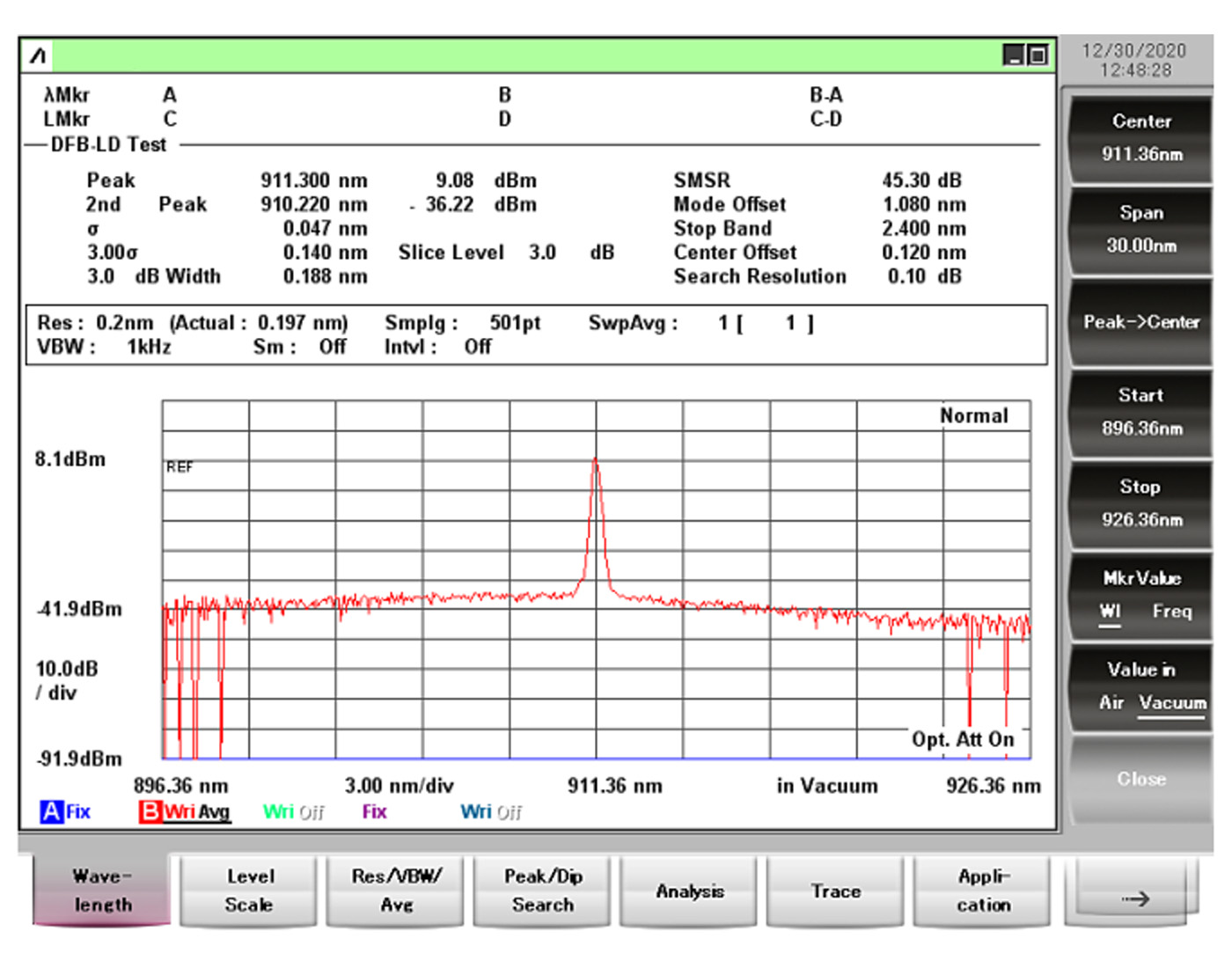

Spectrum Graph

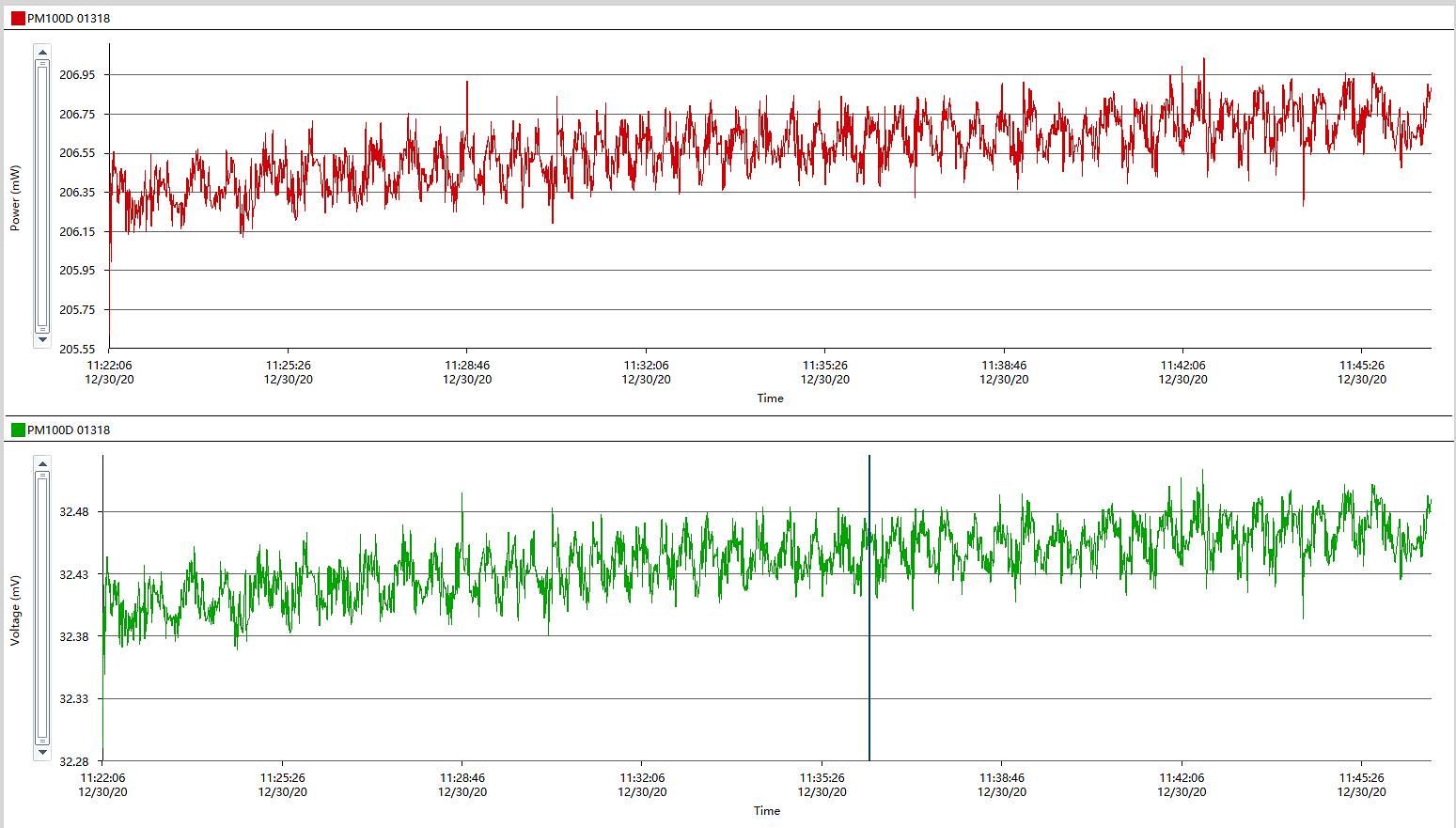

Power Stability Curve

Ordering info

LDC-250-M-910-FBG

Operating Wavelength：

910: 910nm 915: 915nm
