1064nm Long-Distance Collimating Lens

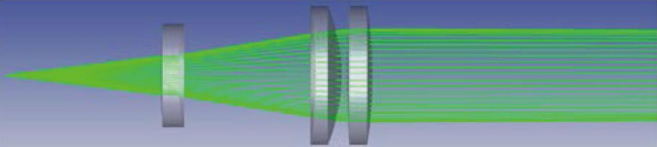

The 1064nm Long-Distance Collimating Lens is designed to collimate and shape the output from optical fibers, providing diffraction-limited performance for lasers emitted through various fiber connections at the designed wavelength. The collimation distance can reach up to 200 meters. This series of collimating lenses has a compact structure that is not affected by misalignment. The design incorporates aberration correction and uses an air-spaced double-lens configuration, ensuring excellent collimation results. The effective focal length of the double-lens is wavelength-dependent, so it is recommended to use this series of collimating lenses at the designed wavelength for optimal performance.
Product features:Fiber Collimator with FC/APC, FC/PC, or SMA905 Connectors、 Can be used for wavelengths from 405 nm to 1.55 μm.、 Simplified coupling of free-space laser to optical fiber、 Double-lens design, aberration correction performance、 Non-magnetic stainless steel housing
Application area:
Unit Price
Please contact customer service for a discounted quote.
Part Number
NIR-CLM-1064-15.2-0.005-95
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing


Beam waist spot diameter: Taken at the 1/e² point of the Gaussian beam, calculated using the theoretical value for single-mode fiber at each wavelength.
Far-field divergence angle of the beam: The input uses single-mode fiber for each wavelength, with the divergence angle calculated according to the theoretical value of a Gaussian beam at the 1/e² point.
Tolerance: + 0.01° / 0.0°






Technical Parameters

Central Wavelength

Bandwidth

Beam Waist Diameter (at 1/e²)

Beam Divergence Angle (Far Field)

Effective Focal Length

Numerical Aperture (Lens)

Fiber Type

Transmittance

405nm

±30nm

10.2mm

0.09mrad

66.5mm

0.19

405HP

>92%

450nm

±30nm

13.7mm

0.07mrad

68.4mm

0.18

405HP

>92%

520nm

±30nm

14.2mm

0.06mrad

70.3mm

0.18

460HP

>92%

635nm

±30nm

14.5mm

0.07mrad

72.1mm

0.17

630HP

>92%

780nm

±30nm

14.2mm

0.07mrad

73.3mm

0.17

780HP

>92%

850nm

±30nm

14.9mm

0.07mrad

73.7mm

0.17

780HP

>92%

905nm

±30nm

14.9mm

0.07mrad

73.9mm

0.17

980HP

>92%

980nm

±30nm

15.0mm

0.09mrad

74.2mm

0.17

980HP

>92%

1064nm

±30nm

15.2mm

0.09mrad

74.5mm

0.17

980HP

>92%

1310nm

±30nm

12.9mm

0.12mrad

75.1mm

0.17

SMF-28e

>92%

1550nm

±30nm

14.2mm

0.14mrad

75.6mm

0.17

SMF-28e

>92%

1650nm

±30nm

14.5mm

0.14mrad

76.0mm

0.17

SMF-28e

>92%
