4.0um High-Power Benchtop Mid-Infrared FP-QCL Quantum Cascade Laser MIR-QCL-W4000 (Benchtop Light Source)

The 4.0um high-power desktop FP-QCL quantum cascade laser is developed by Idealphotonics as a continuous-wave laser with relatively high output power. It provides several hundred milliwatts of collimated output power, making it suitable for mid-infrared testing light source requirements. Additionally, the desktop FP-QCL laser module integrates a drive and temperature control module, and it can also be controlled via software to adjust the temperature and operating current of the laser. This ensures stable operation of the laser, maintaining the accuracy of the measurement results

Product features：Low power consumption, high power、 High side-mode suppression ratio、 Software intelligent control、 Compact structure and size

Application area：Mid-infrared testing light source、 Mid-infrared device analysis、 Mid-infrared system light source

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-MIR-QCL-W4000-1-FP-0250

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Tuning characteristics

Parameters	Unit	Technical Specification
		Min.	Typ.	Max.
PN#		4.0umFP-QCL
Laser collimated output power	mW		250	280
Peak operating wavelength	um	4.0	4.05	4.1
Spectral width (FWHM)	nm		3
Output side mode suppression ratio (SMSR)	dB	30
Output isolation	dB		30
Wavelength temperature coefficient	nm/℃		0.6
Wavelength current coefficient	nm/mA		0.2
Output power stability (8 hours)	%		±1	±4
Output power adjustable range	%	0		100
TEC (Thermoelectric cooler) operating range	℃	0		50
Operating voltage	VAC	100	220	240
Operating temperature	℃	0		55
Storage temperature	℃	-20		65
Dimensions	mm	340(L)×200(W)×200(H)

Technical Specification Explanation:

1. Output power is optional.

2. Peak operating wavelength is optional.

3. Output power stability test condition is 25°C, after 30 minutes of warm-up time post power-on.

4. Maximum power consumption refers to the overall power consumption under extreme operating conditions.

5. I = 0.80 A, V = 8.7 V, T = 15°C, measured at 1/e².

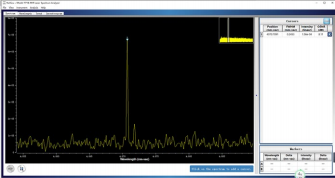

4.0um FP-QCL Laser Wavelength Spectrum Chart

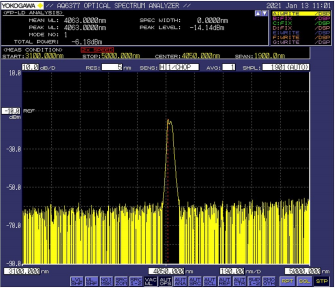

Laser Spectrum (Continuous)

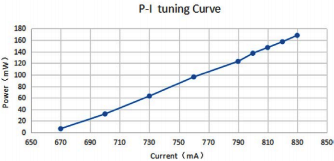

QCL Laser Characteristic Curve (Typical Wavelength 4.0um) Output Power Characteristic Curve

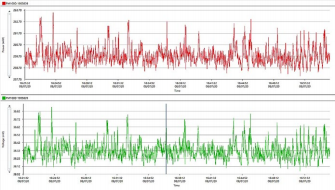

Power Stability of 4.0um FP-QCL Laser


Spot analysis


2-D Beam Proﬁle at 1524.0 mm (60.0 in)


3-D Beam Proﬁle at 1524.0 mm (60.0 in)

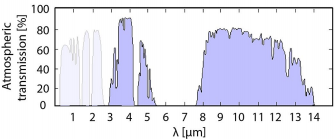

Mid-infrared atmospheric window

PN#/Ordering info

MIR-QCL- W□□□□ -☆-△-XX

W□□□□：Wavelength

4000:4000nm 4600:4600nm 9000:9000nm

☆ ：Collimated output

1： With

0: Without

△：Laser type

FP:QCL-FP

DFB:QCL-DFB

XX: Output power

001=1mw

010=10mw

250=250mw

400=400mw

1000=1000mw

CW Distributed Feedback (DFB) Quantum Cascade Laser

* Center wavelength measured at T = 15°C under continuous wave

* Center wavelength tuning range: +/- 0.03 um

* Other center wavelengths are listed in the table +/- 100 nm We can provide screening services

* Other center wavelengths can be customized, minimum order quantity: 5 pieces

The wavelengths we can currently provide are as follows*

Wavelength(μm)	Wave number(cm^-1)	Output power(mW)	Wavelength(μm)	Wave number(cm^-1)	Output power(mW)	Wavelength(μm)	Wave number(cm^-1)	Output power(mW)
4.22	2370	> 50	6.25	1600	> 100	9.38	1066	> 100
4.28	2336	> 50	7.15	1399	> 100	9.47	1056	> 150
4.32	2315	> 50	7.26	1377	> 100	9.49	1054	> 150
4.34	2304	> 50	7.32	1366	> 100	9.52	1050	> 200
4.45	2247	> 80	7.37	1357	> 100	9.56	1046	> 200
4.48	2232	> 80	7.43	1346	> 150	9.63	1038	> 150
4.53	2208	> 150	7.57	1321	> 150	9.66	1035	> 100
4.56	2193	> 150	7.61	1314	> 150	9.68	1033	> 100
4.59	2179	> 150	7.75	1290	> 300	9.72	1029	> 100
4.61	2169	> 100	7.78	1285	> 300	9.95	1005	> 100
4.72	2119	> 100	7.80	1282	> 300	10.24	977	> 150
5.18	1931	> 150	7.82	1279	> 300	10.26	975	> 150
5.26	1901	> 150	7.85	1274	> 300	10.28	973	> 150
5.66	1767	> 300	8.01	1248	> 100	10.32	969	> 150
5.73	1745	> 150	8.28	1208	> 200	10.36	965	> 150
6.13	1631	> 150	9.02	1109	> 100	10.54	949	> 100
6.15	1626	> 150	9.05	1105	> 100	10.60	943	> 80
6.18	1618	> 100	9.26	1080	> 100	10.63	941	> 80

Pulsed Distributed Feedback (DFB) Quantum cascade lasers

Wavelength(μm)	Wave number(cm^-1)	Output power(mW)	Wavelength(μm)	Wave number(cm^-1)	Output power(mW)	Wavelength(μm)	Wave number(cm^-1)	Output power(mW)
3.399	2942	4.453	2245	5.193	1925	6.135	1629	7.788
3.402	2939	4.457	2243	5.214	1917	6.143	1627	7.795
3.450	2898	4.461	2241	5.224	1914	6.153	1625	7.809
3.451	2897	4.465	2239	5.233	1910	6.156	1624	7.819
3.477	2876	4.471	2236	5.240	1908	6.170	1620	7.831
3.480	2873	4.475	2234	5.244	1906	6.177	1618	7.857
3.497	2859	4.479	2232	5.250	1904	6.214	1609	7.869
3.519	2841	4.483	2230	5.255	1902	6.225	1606	7.887
3.536	2828	4.485	2229	5.261	1900	6.228	1605	7.906
3.538	2826	4.489	2227	5.264	1899	6.242	1602	7.933
3.546	2820	4.492	2226	5.266	1898	6.243	1601	7.986
3.549	2817	4.498	2223	5.272	1896	6.258	1597	7.998
3.566	2804	4.501	2221	5.279	1894	6.262	1596	8.016
3.568	2802	4.506	2219	5.289	1890	7.148	1398	8.026
3.605	2773	4.509	2217	5.294	1888	7.164	1395	8.054
3.607	2772	4.513	2215	5.304	1885	7.176	1393	8.101
3.655	2735	4.517	2213	5.306	1884	7.185	1391	8.163
3.724	2685	4.521	2211	5.452	1834	7.195	1389	8.220
4.184	2390	4.525	2209	5.486	1822	7.205	1387	8.242
4.185	2389	4.529	2207	5.523	1810	7.217	1385	8.252
4.188	2387	4.534	2205	5.557	1799	7.229	1383	8.265
4.194	2384	4.538	2203	5.592	1788	7.258	1377	8.282
4.197	2382	4.543	2201	5.612	1781	7.268	1375	8.292
4.200	2380	4.545	2200	5.626	1777	7.285	1372	8.301
4.204	2378	4.550	2197	5.632	1775	7.289	1371	8.326
4.207	2376	4.554	2195	5.639	1773	7.327	1364	8.335
4.215	2372	4.560	2192	5.646	1771	7.337	1362	8.352
4.219	2370	4.565	2190	5.651	1769	7.348	1360	8.386
4.221	2369	4.569	2188	5.657	1767	7.354	1359	8.902
4.226	2366	4.574	2186	5.665	1765	7.367	1357	8.948
4.231	2363	4.577	2184	5.669	1763	7.373	1356	9.004
